Proportional Valves
Description The OMEGA™ PV100 Series comprises economical proportional valves for use with gases. They combine a solenoid valve with an electronics package that digita... Read More
PV100
| Price | Stock | Flow Coefficient | Input Control Signal | Leak Integrity | Orifice Size | Power | Response Time | Supply Voltage | Wetted Materials |
|---|---|---|---|---|---|---|---|---|---|
|
Available in 11 weeks
|
0.045 cv
|
0 to 10 Vdc
|
Not Applicable
|
3/64 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
|
|
Available in 11 weeks
|
0.045 cv
|
0 to 5 Vdc
|
Not Applicable
|
3/64 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
|
|
Available in 11 weeks
|
0.08 cV
|
0 to 10 Vdc
|
Not Applicable
|
1/16 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
|
|
Available in 11 weeks
|
0.08 cV
|
0 to 5 Vdc
|
Not Applicable
|
1/16 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
|
|
Available in 11 weeks
|
0.12 cV
|
0 to 10 Vdc
|
Not Applicable
|
5/64 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
|
|
Available in 11 weeks
|
0.12 cV
|
0 to 5 Vdc
|
Not Applicable
|
5/64 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
Description An electronically controlled proportioning valve (ECV) will take an electrical input signal (usually 4 to 20 mA) and proportion the amount of flow through... Read More
PV14
| Price | Stock | Flow Coefficient | Input Control Signal | Leak Integrity | Orifice Size | Power | Response Time | Supply Voltage | Wetted Materials |
|---|---|---|---|---|---|---|---|---|---|
|
3 In Stock
|
3.5 cV
|
4 to 20 mA
|
Not Applicable
|
Not Applicable
|
10 W typical 23 W maximum
|
Not Applicable
|
12 to 24 Vdc
|
Brass
|
|
|
3 In Stock
|
3.5 cV
|
4 to 20 mA
|
Not Applicable
|
Not Applicable
|
10 W typical 23 W maximum
|
Not Applicable
|
12 to 24 Vdc
|
316 Stainless Steel
|
|
|
2 In Stock
|
0.6 cV
|
4 to 20 mA
|
Not Applicable
|
Not Applicable
|
10 W typical 23 W maximum
|
Not Applicable
|
12 to 24 Vdc
|
Brass
|
|
|
1 In Stock
|
0.6 cV
|
4 to 20 mA
|
Not Applicable
|
Not Applicable
|
10 W typical 23 W maximum
|
Not Applicable
|
12 to 24 Vdc
|
316 Stainless Steel
|
|
|
3 In Stock
|
6.5 cV
|
4 to 20 mA
|
Not Applicable
|
Not Applicable
|
10 W typical 23 W maximum
|
Not Applicable
|
12 to 24 Vdc
|
Brass
|
|
|
Available in 9 weeks
|
6.5 cV
|
4 to 20 mA
|
Not Applicable
|
Not Applicable
|
10 W typical 23 W maximum
|
Not Applicable
|
12 to 24 Vdc
|
316 Stainless Steel
|
|
|
3 In Stock
|
1.7 cV
|
4 to 20 mA
|
Not Applicable
|
Not Applicable
|
10 W typical 23 W maximum
|
Not Applicable
|
12 to 24 Vdc
|
Brass
|
|
|
2 In Stock
|
1.0 cV
|
4 to 20 mA
|
Not Applicable
|
Not Applicable
|
10 W typical 23 W maximum
|
Not Applicable
|
12 to 24 Vdc
|
Brass
|
|
|
Available in 9 weeks
|
1.0 cV
|
4 to 20 mA
|
Not Applicable
|
Not Applicable
|
10 W typical 23 W maximum
|
Not Applicable
|
12 to 24 Vdc
|
316 Stainless Steel
|
|
|
4 In Stock
|
1.7 cV
|
4 to 20 mA
|
Not Applicable
|
Not Applicable
|
10 W typical 23 W maximum
|
Not Applicable
|
12 to 24 Vdc
|
316 Stainless Steel
|
Description The FSV10 Series electronic proportioning solenoid valves can control the flow of a wide variety of gases and liquids. The variablestroke electromagnetic ... Read More
FSV10
| Price | Stock | Flow Coefficient | Input Control Signal | Leak Integrity | Orifice Size | Power | Response Time | Supply Voltage | Wetted Materials |
|---|---|---|---|---|---|---|---|---|---|
|
1 In Stock
|
0.009 cV
|
0 to 5 Vdc or 4 to 20 mA
|
1 x 10-9sccs helium individually tested
|
0.51 mm (0.02 in)
|
Not Applicable
|
500 msec maximum
|
12 to 30 Vdc
|
316 and 416 SS FKM O-rings
|
|
|
Available in 5 weeks
|
0.055 cV
|
0 to 5 Vdc or 4 to 20 mA
|
1 x 10-9sccs helium individually tested
|
1.4 mm (0.055 in)
|
Not Applicable
|
500 msec maximum
|
12 to 30 Vdc
|
316 and 416 SS FKM O-rings
|
|
|
4 In Stock
|
0.068 cV
|
0 to 5 Vdc or 4 to 20 mA
|
1 x 10-9sccs helium individually tested
|
1.6 mm (0.063 in)
|
Not Applicable
|
500 msec maximum
|
12 to 30 Vdc
|
316 and 416 SS FKM O-rings
|
|
|
4 In Stock
|
0.24 cV
|
0 to 5 Vdc or 4 to 20 mA
|
1 x 10-9sccs helium individually tested
|
3.18 mm (0.125 in)
|
Not Applicable
|
500 msec maximum
|
12 to 30 Vdc
|
316 and 416 SS FKM O-rings
|
|
|
5 In Stock
|
0.033 cV
|
0 to 5 Vdc or 4 to 20 mA
|
1 x 10-9sccs helium individually tested
|
1.02 mm (0.04 in)
|
Not Applicable
|
500 msec maximum
|
12 to 30 Vdc
|
316 and 416 SS FKM O-rings
|
Description The OMEGA™ PV100 Series comprises economical proportional valves for use with gases. They combine a solenoid valve with an electronics package that digita... Read More

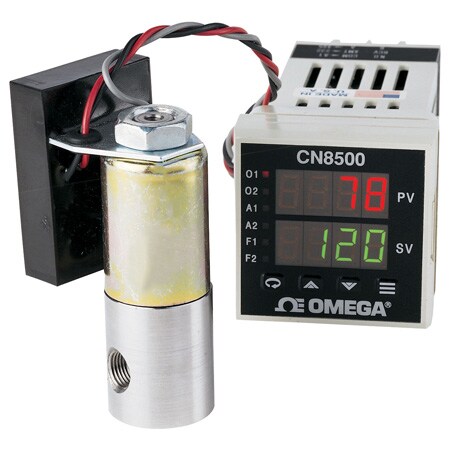

PV101
| Price | Stock | Flow Coefficient | Input Control Signal | Leak Integrity | Orifice Size | Power | Response Time | Supply Voltage | Wetted Materials |
|---|---|---|---|---|---|---|---|---|---|
|
Available in 11 weeks
|
0.002 cV
|
0 to 5 Vdc
|
Not Applicable
|
1/32 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
|
|
2 In Stock
|
0.002 cV
|
0 to 10 Vdc
|
Not Applicable
|
1/32 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
|
|
Available in 11 weeks
|
0.002 cV
|
4 to 20 mA
|
Not Applicable
|
1/32 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
|
|
Available in 11 weeks
|
0.045 cv
|
4 to 20 mA
|
Not Applicable
|
3/64 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
|
|
Available in 11 weeks
|
0.08 cV
|
4 to 20 mA
|
Not Applicable
|
1/16 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
|
|
Available in 11 weeks
|
0.12 cV
|
4 to 20 mA
|
Not Applicable
|
5/64 in
|
7 W maximum
|
40 ms @ 0 pressure 100 ms @ max pressure
|
12 to 24 Vdc
|
Stainless steel with FKM seals
|
Board Only for PV38-B Valve Read More
Elec Prop. 3/8 Valve, Brass Read More
Unregulated power supply, 12 Vdc @ 3 Amps Read More
Board for PV12 Read More
110 Vac/24Vdc wall socket power supply with 1.7 m (5.5') cord Read More
