Conductivity Cells
Ajouté à votre panier
Configuration terminée.
Veuillez ajouter au panier pour la conserver ou quitter la configuration
Veuillez ajouter au panier pour la conserver ou quitter la configuration
Échec de l'enregistrement des configurations, cliquez sur le bouton Configurer Recommencer

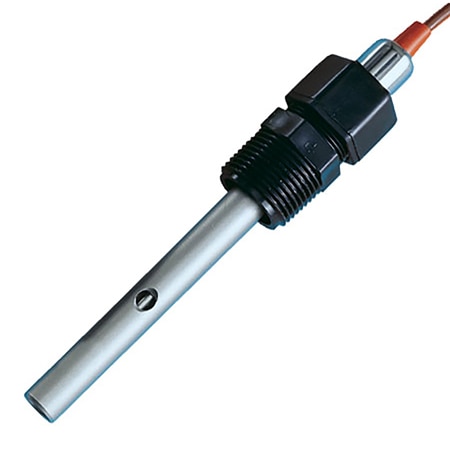

- Compatible with CDCN-90A, CDCN-91, CDTX-90A, CDCN-5800
- Fitting Material:
Polypropylene - Electrodes: 316 SS
CDCE-90-01 Options de modèles
Voir tous les modèlesModifiez ces spécifications pour commander un modèle différente. Toutes les combinaisons ne sont pas valides. Les options compatibles avec les sélections précédentes seront en gras.
*Les options en surbrillance ne sont pas compatibles. Veuillez sélectionner une combinaison différente.
Range
Max Operating Pressure
Max Temperature
Process Connection Type
Process Connection Size
Measurement Type
Wetted Materials
SPECIFICATIONS
CDCE-90-001, CDCE-90-01, CDCE-90-1
Cell:
CDCE-90-001: 0.01
CDCE-90-01: 0.1
CDCE-90-1: 1.0
Conductivity Range:
CDCE-90-001: 0.010 to 100 µS (10 K? to 100 M?)
CDCE-90-01: 1 to 1000 µS
CDCE-90-1: 10 to 10,000 µS
Temperature Compensation: Pt1000
Wetted Materials:
O-Rings: EPR
Insulator Material: PTFE
Electrodes: 316 SS
Standard Fitting: Polypropylene
Max. Pressure: 6.9 bar (100 psi)
Max. Temperature: 100°C (212°F)
Optional Fitting: 316 SS ½ NPT
Max Pressure: 13.8 bar (200 psi)
Max Temperature: 120°C (248°F)
CDCE-90-10
Cell Constant: 10.0
Conductivity Range: 100 to 200,000 µS
Temperature Compensation: Pt1000
O-Ring: EPR
Insulator Material: CPVC
Electrodes: 316 SS
Fitting Material: 316 SS
Maximum Pressure/Temperature: 100 psig @ 95°C (203°F)
CDCE-90-20B
Cell Constant: 20.0
Conductivity Range: 200 to 400,000 µS
Temperature Compensation: Pt1000
O-Ring: EPR
Insulator Material: PEEK
Electrodes: 316 SS
Fitting Material: 316 SS
Maximum Pressure/ Temperature: 100 psig @ 150°C (302°F)
CDCE-90S-001, CDCE-90S-01, CDCE-90S-1
Cell:
CDCE-90S-001: 0.01
CDCE-90S-01: 0.1
CDCE-90S-1: 1.0
Conductivity Range:
CDCE-90S-001: 0.010 to 100 µS (10 K? to 100 M?)
CDCE-90S-01: 1 to 1000 µS
CDCE-90S-1: 10 to 10,000 µS
Sanitary Fitting Size: 1, 11/2, 2"
Temperature Compensation: Pt1000
Wetted Materials:
O-Ring: EPR
Insulator Material: PTFE
Electrodes: 316 SS or titanium
Sanitary Fitting: 316 SS or titanium
Maximum Pressure: 6.9 bar (100 psi)
Maximum Temperature: 120°C (248°F)
CDCE-90-001, CDCE-90-01, CDCE-90-1
Cell:
CDCE-90-001: 0.01
CDCE-90-01: 0.1
CDCE-90-1: 1.0
Conductivity Range:
CDCE-90-001: 0.010 to 100 µS (10 K? to 100 M?)
CDCE-90-01: 1 to 1000 µS
CDCE-90-1: 10 to 10,000 µS
Temperature Compensation: Pt1000
Wetted Materials:
O-Rings: EPR
Insulator Material: PTFE
Electrodes: 316 SS
Standard Fitting: Polypropylene
Max. Pressure: 6.9 bar (100 psi)
Max. Temperature: 100°C (212°F)
Optional Fitting: 316 SS ½ NPT
Max Pressure: 13.8 bar (200 psi)
Max Temperature: 120°C (248°F)
CDCE-90-10
Cell Constant: 10.0
Conductivity Range: 100 to 200,000 µS
Temperature Compensation: Pt1000
O-Ring: EPR
Insulator Material: CPVC
Electrodes: 316 SS
Fitting Material: 316 SS
Maximum Pressure/Temperature: 100 psig @ 95°C (203°F)
CDCE-90-20B
Cell Constant: 20.0
Conductivity Range: 200 to 400,000 µS
Temperature Compensation: Pt1000
O-Ring: EPR
Insulator Material: PEEK
Electrodes: 316 SS
Fitting Material: 316 SS
Maximum Pressure/ Temperature: 100 psig @ 150°C (302°F)
CDCE-90S-001, CDCE-90S-01, CDCE-90S-1
Cell:
CDCE-90S-001: 0.01
CDCE-90S-01: 0.1
CDCE-90S-1: 1.0
Conductivity Range:
CDCE-90S-001: 0.010 to 100 µS (10 K? to 100 M?)
CDCE-90S-01: 1 to 1000 µS
CDCE-90S-1: 10 to 10,000 µS
Sanitary Fitting Size: 1, 11/2, 2"
Temperature Compensation: Pt1000
Wetted Materials:
O-Ring: EPR
Insulator Material: PTFE
Electrodes: 316 SS or titanium
Sanitary Fitting: 316 SS or titanium
Maximum Pressure: 6.9 bar (100 psi)
Maximum Temperature: 120°C (248°F)
Are conductivity cells considered to be EAR99 in regard to Commerce Control?
Thank you for your inquiry. The conductivity cell probes listed are EAR99.
Date published: 2023-10-24
Item# CDCE-90-001: 1. How long is the cable and if i need a BNC termination at two feet is this available?
Thank you for your inquiry on the conductivity probe. The standard length is 15 feet and has stripped leads or wires on the end and unfortunately, there is no BNC connection available, only the leads.
Date published: 2020-08-25
