Brass or SS Inline Duct Heater up to 440°F and 50 kW Power

Low Temperature Air Duct Heaters

0,0

(0)

Cliquez et maintenez pour zoomer

Fiche technique (PDF)

C$3,390.35

Article# CABB-611/480/3P

Remises de volume disponibles

Calendrier de remise sur volume

Quantité	Prix unitaire
1-4	C$3,390.35
5-9	C$3,220.83
10-24	C$3,153.03
25-49	C$3,017.41
50-99	C$2,949.60
100+	C$2,881.80

Qté

Ajouté à votre panier

En stock

Délai de livraison (si pas en stock): 6 semaines

Ajouter à la liste des projets

Side Terminals (type CAB)

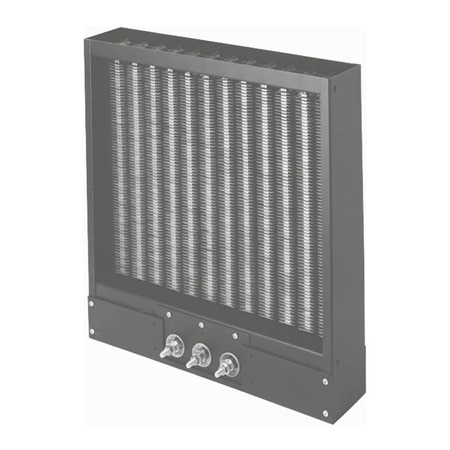

Bottom Terminals (type CABB)
6 - 100 kW
120, 208, 240 and 480 Volt

Voir Spécs

CABB-611/480/3P Options de modèles

Voir tous les modèles

Modifiez ces spécifications pour commander un modèle différente. Toutes les combinaisons ne sont pas valides. Les options compatibles avec les sélections précédentes seront en gras.

*Les options en surbrillance ne sont pas compatibles. Veuillez sélectionner une combinaison différente.

Power

Supply Voltage

Supply Voltage Type

Mounting Size

Sheath Material

Features

Maximum Outlet Air Temperature

Power Density

Mounting Style

Specs

Modifier les options du modèles

Features
Simple Duct Transition Sections may be used to adapt standard heater sizes to various duct sizes to increase air velocities for better heat transfer, lower sheath temperature and longer element life.

Field Wiring Terminals — Heavy duty 3/8' diameter bolts of either brass (iron sheath units) or Stainless Steel (chrome steel sheath units) with necessary hardware are provided for field wiring connections. Terminals are located on the side for CAB units and on the bottom for CABB units, and should be on the outside of ducting.

Fins of aluminized steel are provided to improve heat transfer to the air.

Elements are individually replaceable.

Terminal Cover Option is available to prevent accidental contact with live electrical terminals (PCN 269720), one (1) required per circuit. MONEL Sheath and MONEL Fins are available for humid conditions. Model TDH heaters, using Fintube elements are also available.

kW	Volts	Phase	Amps/ Circ.	No. Circ.	No. Elem.	A	B	D	Rust-Resisting Iron Sheath Temperatures to 750°F Model No.	Chrome Steel Sheath Temperatures to 950°F Model No.	Wt. (Lbs.)
CAB — Side Terminals (26 W/In2)
6 6 6 6 6 6 6	120 208 240 480 208 240 480	1 1 1 1 3 3 3	50 28.9 25 12.5 16.7 14.5 7.2	1 1 1 1 1 1 1	6 6 6 6 6 6 6	10 3/4 10 3/4 10 3/4 10 3/4 10 3/4 10 3/4 10 3/4	15 7/8 15 7/8 15 7/8 15 7/8 15 7/8 15 7/8 15 7/8	11 1/2 11 1/2 11 1/2 11 1/2 11 1/2 11 1/2 11 1/2	CAB-62/120V CAB-62/208V CAB-62/240V CAB-62/480V CAB-62/208V/3P CAB-62/240V/3P CAB-62/480V/3P	CAB-611/120V CAB-611/208V CAB-611/240V CAB-611/480V CAB-611/208V/3P CAB-611/240V/3P CAB-611/480V/3P	25 25 25 25 25 25 25
12 12 12 12 12 12	208 240 480 208 240 480	1 1 1 3 3 3	57.7 50 25 33.4 28.9 14.5	1 1 1 1 1 1	9 9 9 9 9 9	15 3/8 15 3/8 15 3/8 15 3/8 15 3/8 15 3/8	18 1/2 18 1/2 18 1/2 18 1/2 18 1/2 18 1/2	14 1/8 14 1/8 14 1/8 14 1/8 14 1/8 14 1/8	CAB-122/208V CAB-122/240V CAB-122/480V CAB-122/208V/3P CAB-122/240V/3P CAB-122/480V/3P	CAB-1211/208V CAB-1211/240V CAB-1211/480V CAB-1211/208V/3P CAB-1211/240V/3P CAB-1211/480V/3P	35 35 35 35 35 35
15 15 15 15 15 15	208 240 480 208 240 480	1 1 1 3 3 3	72.1 62.5 31.3 41.7 36.1 18.1	1 1 1 1 1 1	9 9 9 9 9 9	15 3/8 15 3/8 15 3/8 15 3/8 15 3/8 15 3/8	21 5/8 21 5/8 21 5/8 21 5/8 21 5/8 21 5/8	17 1/4 17 1/4 17 1/4 17 1/4 17 1/4 17 1/4	CAB-152/208V CAB-152/240V CAB-152/480V CAB-152/208V/3P CAB-152/240V/3P CAB-152/480V/3P	CAB-1511/208V CAB-1511/240V CAB-1511/480V CAB-1511/208V/3P CAB-1511/240V/3P CAB-1511/480V/3P	40 40 40 40 40 40
20 20 20	208 240 480	3 3 3	55.6 48.2 24.1	1 1 1	12 12 12	20 1/8 20 1/8 20 1/8	21 5/8 21 5/8 21 5/8	17 1/4 17 1/4 17 1/4	CAB-202/208V CAB-202/240V CAB-202/480V	CAB-2011/208V CAB-2011/240V CAB-2011/480V	55 55 55
25 25 25	208 240 480	3 3 3	69.5 60.2 30.1	1 1 1	12 12 12	20 1/8 20 1/8 20 1/8	26 1/8 26 1/8 26 1/8	21 3/4 21 3/4 21 3/4	CAB-252/208V CAB-252/240V CAB-252/480V	CAB-2511/208V CAB-2511/240V CAB-2511/480V	65 65 65
30	480	3	18.1	2	18	29 1/2	21 5/8	17 1/4	--	CAB-3011/480V	75
40 40 40	208 240 480	3 3 3	55.6 48.2 24.1	2 2 2	18 18 18	29 1/2 29 1/2 29 1/2	27 3/8 27 3/8 27 3/8	23 23 23	CAB-402/208V CAB-402/240V CAB-402/480V	CAB-4011/208V CAB-4011/240V CAB-4011/480V	90 90 90
50 50 50	208 240 480	3 3 3	69.5 60.2 30.1	2 2 2	18 18 18	29 1/2 29 1/2 29 1/2	33 1/8 33 1/8 33 1/8	28 3/4 28 3/4 28 3/4	CAB-502/208V CAB-502/240V CAB-502/480V	CAB-5011/208V CAB-5011/240V CAB-5011/480V	110 110 110
75 75 75	208 240 480	3 3 3	69.5 60.2 30.1	3 3 3	27 27 27	44 7/16 44 7/16 44 7/16	42 1/8 42 1/8 42 1/8	37 3/4 37 3/4 37 3/4	CAB-752/208V CAB-752/240V CAB-752/480V	CAB-7511/208V CAB-7511/240V CAB-7511/480V	200 200 200
100 100 100	208 240 480	3 3 3	92.6 80.3 40.1	3 3 3	27 27 27	44 7/16 44 7/16 44 7/16	47 1/2 47 1/2 47 1/2	43 1/8 43 1/8 43 1/8	CAB-1002/208V CAB-1002/208V CAB-1002/480V	CAB-10021/208V CAB-10021/208V CAB-10021/480V	220 220 220
CABB — Bottom Terminals (26 W/In2)
6 6	240 480	3 3	14.5 7.2	1 1	6 6	10 3/4 10 3/4	15 7/8 15 7/8	111/2 111/2	-- --	CABB-611/240 CABB-611/480	25 25
12 12 12	208 240 480	3 3 3	33.4 28.9 14.5	1 1 1	9 9 9	15 3/8 15 3/8 15 3/8	18 1/2 18 1/2 18 1/2	141/8 141/8 141/8	-- -- --	CABB-1211/208 CABB-1211/240 CABB-1211/480	35 35 35
20	480	3	24.1	1	12	20 1/8	21 5/8	171/4	--	CABB-2011/480	55
25	480	3	30.1	1	12	29 1/2	26 1/8	213/4	CABB-252/480	CABB-2511/480	65
40	480	3	24.1	2	18	29 1/2	27 3/8	23	CABB-402/480	CABB-4011/480	90
50	480	3	30.1	2	18	29 1/2	33 1/8	283/4	CABB-502/480	CABB-5011/480	110
75	480	3	30.1	3	27	44 7/16	42 1/8	373/4	CABB-752/480	CABB-7511/480	200
100	480	3	40.1	3	27	44 7/16	47 1/2	431/8	CABB-1002/480	CABB-10021/480	220
