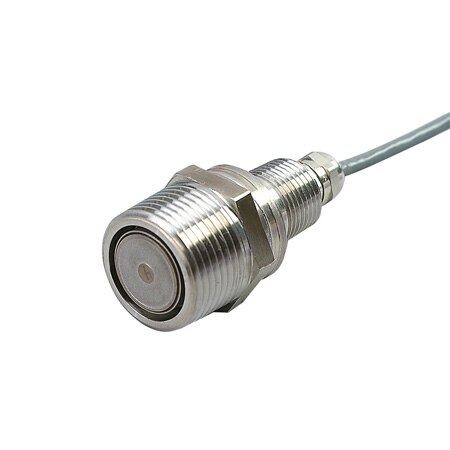

1" NPT Flush Diaphragm Low Pressure Transducer
- All Stainless Steel Construction
- Optional Hastelloy C Construction
- Processing and Industrial Applications
- Large Flush Diaphragm for Plug Free Measurement of Difficult Fluids
OMEGA's PX42 is a high-accuracy, millivolt output, industrial pressure transducer with a specially designed flush diaphragm for use with industrial fluids and slurries that are difficult to measure because of sticking or plugging of orifices. Its hermetically sealed, all stainless steel construction makes it suitable for the harshest industrial environments. Three meters (10') of vented 4-conductor shielded cable is standard with a ½ NPT fitting on the body for conduit installation. Pressure ranges from 0 to 3 up to 30 psi are available to cover most processing and industrial applications.
The PX42 is also available in metric configurations, with G1 ports, and models from 0-400 mbar to 0-1.6 bar pressure ranges. Please see the PXM42 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
ELECTRICAL
Excitation Voltage: 10V AC/DC (15 V max)
Full Scale Output (F.S.O.): Capacity / Nominal F.S.O. / Min @ 10V
3 PSI / 0.8 mV/V / 5.2 mV
5 PSI / 1.0 mV/V / 8.6 mV
400 mBAR / 1.0 mV/V / 10.0 mV
8 PSI / 1.5 mV/V / 13.8 mV
10 PSI / 2.0 mV/V / 17.3 mV
1 BAR / 3.0 mV/V / 26 mV
15 PSI / 3.0 mV/V / 26 mV
1.6 BAR / 3.0 mV/V / 26 mV
30 PSI / 3.0 mV/V / 26 mV
Input Resistance: 2500 Ω nom
Output Resistance: 2500 Ω nom
Zero Balance: ±2.0% FSO (±5% for 15 psi)BB
PERFORMANCE
Accuracy: 0.25% linearity, hysteresis and repeatability combined
ENVIRONMENTAL
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.005% of rdg/°F
Zero: 0.005% of FSO/°F
PRESSURE
Proof Pressure:
≤8 psi: 300% of rated pressure
>8 psi: 200% of rated pressure
Burst Pressure: 500% of rated pressure
MECHANICAL
Wetted Parts: 316L SS with InconelR diaphragm
Optional: Hastelloy C-276
Pressure Port: 1-11½ NPT male
Electrical Connection: 3 m (10') 4-conductor shielded vented cable
The PX42 is also available in metric configurations, with G1 ports, and models from 0-400 mbar to 0-1.6 bar pressure ranges. Please see the PXM42 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
ELECTRICAL
Excitation Voltage: 10V AC/DC (15 V max)
Full Scale Output (F.S.O.): Capacity / Nominal F.S.O. / Min @ 10V
3 PSI / 0.8 mV/V / 5.2 mV
5 PSI / 1.0 mV/V / 8.6 mV
400 mBAR / 1.0 mV/V / 10.0 mV
8 PSI / 1.5 mV/V / 13.8 mV
10 PSI / 2.0 mV/V / 17.3 mV
1 BAR / 3.0 mV/V / 26 mV
15 PSI / 3.0 mV/V / 26 mV
1.6 BAR / 3.0 mV/V / 26 mV
30 PSI / 3.0 mV/V / 26 mV
Input Resistance: 2500 Ω nom
Output Resistance: 2500 Ω nom
Zero Balance: ±2.0% FSO (±5% for 15 psi)BB
PERFORMANCE
Accuracy: 0.25% linearity, hysteresis and repeatability combined
ENVIRONMENTAL
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.005% of rdg/°F
Zero: 0.005% of FSO/°F
PRESSURE
Proof Pressure:
≤8 psi: 300% of rated pressure
>8 psi: 200% of rated pressure
Burst Pressure: 500% of rated pressure
MECHANICAL
Wetted Parts: 316L SS with InconelR diaphragm
Optional: Hastelloy C-276
Pressure Port: 1-11½ NPT male
Electrical Connection: 3 m (10') 4-conductor shielded vented cable
