Détecteurs de niveau optiques
Description The LVF-200A-R Series optic sensor creates a pulsed beam of infrared light which is reflected on the oblique flat sensor tip. If the tip is dry, the light... Lire la suite
LVF-200A-R
| Prix | Stock | Connection Size | Housing Material | Maximum Ambient Temperature | Maximum Pressure | Features | Connection Type |
|---|---|---|---|---|---|---|---|
Disponible dans 5 semaines
|
3/4
|
Polypropylene (PP)
|
90°C (194°F)
|
150 psi @ 25°C (76°F)
|
7.6 cm (3 in) Length
|
NPT
|
|
Disponible dans 5 semaines
|
3/4
|
Perfluoroalkoxy (PFA)
|
90°C (194°F)
|
150 psi @ 25°C (76°F)
|
7.6 cm (3 in) Length
|
NPT
|
|
Disponible dans 0 semaine
|
3/4
|
Perfluoroalkoxy (PFA)
|
90°C (194°F)
|
150 psi @ 25°C (76°F)
|
11.4 cm (4.5 in) Length
|
NPT
|
|
Disponible dans 0 semaine
|
3/4
|
Polypropylene (PP)
|
90°C (194°F)
|
150 psi @ 25°C (76°F)
|
11.4 cm (4.5 in) Length
|
NPT
|
Description The LVE-115/116 electro-optic level switches maintain the top-performing environmental capabilities of their larger family members while featuring an over... Lire la suite
LVE-115-116
| Prix | Stock | Connection Size | Output Type | Housing Material | Maximum Ambient Temperature | Maximum Pressure | Features | Connection Type |
|---|---|---|---|---|---|---|---|---|
1
En stock
|
1/2
|
Open collector, 18 mA
|
Nickel-plated carbon steel
|
100°C (212°F)
|
2500 psi
|
Dry sink
|
NPT
|
|
2
En stock
|
1/2
|
Open collector, 18 mA
|
Nickel-plated carbon steel
|
100°C (212°F)
|
2500 psi
|
Wet sink
|
NPT
|
|
Disponible dans 0 semaine
|
1/2
|
Open collector, 18 mA
|
Stainless Steel
|
100°C (212°F)
|
2500 psi
|
Wet sink
|
NPT
|

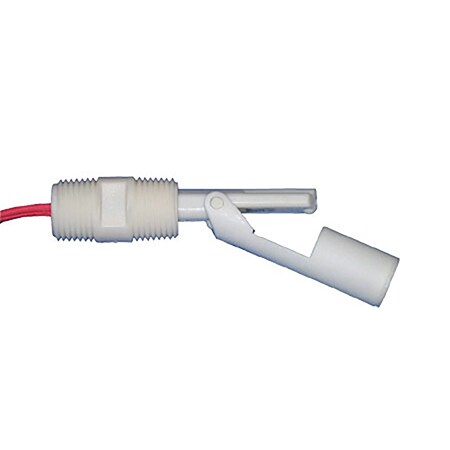

Description The OMEGA™ LVH-200 single station horizontal level switch is cost effective for level control applications in small tanks where it is more convenient to i... Lire la suite
LVH-200-Series
| Prix | Stock | Connection Size | Housing Material | Maximum Ambient Temperature | Maximum Pressure | Connection Type |
|---|---|---|---|---|---|---|
Disponible dans 4 semaines
|
1/2
|
Polypropylene (PP)
|
107°C (225°F)
|
100 psi, 6.89 bar
|
NPT
|
Description The LVSW-701 Series solid state liquid level switch is a direct replacement for mechanical float-type liquid level devices. The switch employs proven ultr... Lire la suite
LVSW-701-Series
| Prix | Stock | Connection Size | Output Type | Housing Material | Maximum Ambient Temperature | Maximum Pressure | Connection Type |
|---|---|---|---|---|---|---|---|
104
En stock
|
3/4
|
1 A SPDT relay
|
316 LSS
|
71°C (160°F)
|
Up to 1000 psig (6895 kPa)
|
NPT
|
Description The LVE-950 Series are the smallest electro-optic liquid level sensors Omega offers, they also carry a high operating temperature capability at 110°C (230... Lire la suite
LVE-950
| Prix | Stock | Connection Size | Housing Material | Maximum Ambient Temperature | Maximum Pressure | Features | Connection Type |
|---|---|---|---|---|---|---|---|
2
En stock
|
1/4
|
Polysulfone
|
110°C (230°F)
|
250 psi (17 bar)
|
Wet sink
|
MNPT
|
|
Disponible dans 6 semaines
|
1/4
|
Brass
|
110°C (230°F)
|
250 psi (17 bar)
|
Wet sink
|
MNPT
|
|
Disponible dans 6 semaines
|
1/4
|
Polysulfone
|
110°C (230°F)
|
250 psi (17 bar)
|
Wet sink
|
M12 x 2-8 thread
|
|
2
En stock
|
1/4
|
Polysulfone
|
110°C (230°F)
|
250 psi (17 bar)
|
Dry sink
|
MNPT
|
|
Disponible dans 6 semaines
|
1/4
|
Polysulfone
|
110°C (230°F)
|
250 psi (17 bar)
|
Dry sink
|
M12 x 2-8 thread
|
Description OMEGA’s LVCN210 Series ultrasonic level transmitter and controller provides continuous level measurement up to 3 m (9.8') with a 4 to 20 mA signal out... Lire la suite
LVCN210-Series
| Prix | Stock | Connection Size | Output Type | Housing Material | Maximum Ambient Temperature | Maximum Pressure | Features | Connection Type |
|---|---|---|---|---|---|---|---|---|
Disponible dans 5 semaines
|
1
|
4 to 20 mA and 4 relays
|
Polycarbonate
|
60°C (140°F)
|
2 bar (30 psi)
|
Standard
|
NPT
|
|
8
En stock
|
1
|
4 to 20 mA and 4 relays
|
Polycarbonate
|
60°C (140°F)
|
2 bar (30 psi)
|
USB Connector
|
NPT
|
|
Disponible dans 5 semaines
|
1
|
4 to 20 mA and 4 relays
|
Polycarbonate
|
60°C (140°F)
|
2 bar (30 psi)
|
USB Connector
|
Straight threads
|
|
Disponible dans 5 semaines
|
1
|
4 to 20 mA and 4 relays
|
Polycarbonate
|
60°C (140°F)
|
2 bar (30 psi)
|
Standard
|
Straight threads
|
Description The LVCN414 Series is a non-contact, ultrasonic level controller and transmitter that delivers reliable, cost-effective, high-performance, small-tank flui... Lire la suite
LVCN414-Series
| Prix | Stock | Connection Size | Output Type | Housing Material | Maximum Ambient Temperature | Features | Connection Type |
|---|---|---|---|---|---|---|---|
3
En stock
|
1
|
4 to 20 mA and 4 relays
|
PC/ABS FR
|
60°C (140°F)
|
Standard
|
NPT
|
|
Disponible dans 5 semaines
|
1
|
4 to 20 mA and 4 relays
|
PC/ABS FR
|
60°C (140°F)
|
USB Connector
|
Straight threads
|
|
5
En stock
|
1
|
4 to 20 mA
|
PC/ABS FR
|
60°C (140°F)
|
USB Connector
|
NPT
|
|
6
En stock
|
1
|
4 to 20 mA
|
PC/ABS FR
|
60°C (140°F)
|
Standard
|
NPT
|
|
Disponible dans 5 semaines
|
1
|
4 relays
|
PC/ABS FR
|
60°C (140°F)
|
USB Connector
|
NPT
|
Charger plus darticles de cette famille ({0}) ...
Montre moins
Description OMEGA’s LVCN318 ultrasonic level transmitter and controller provides continuous level measurement up to 5.5 m (18') with a 4 to 20 mA signal output, a... Lire la suite
LVCN318-Series
| Prix | Stock | Connection Size | Output Type | Housing Material | Maximum Ambient Temperature | Maximum Pressure | Features | Connection Type |
|---|---|---|---|---|---|---|---|---|
Disponible dans 6 semaines
|
2
|
4 to 20 mA and 4 relays
|
Polycarbonate
|
60°C (140°F)
|
2 bar (30 psi)
|
Standard
|
NPT
|
|
Disponible dans 5 semaines
|
2
|
4 to 20 mA and 4 relays
|
Polycarbonate
|
60°C (140°F)
|
2 bar (30 psi)
|
USB Connector
|
Straight threads
|
|
2
En stock
|
2
|
4 to 20 mA and 4 relays
|
Polycarbonate
|
60°C (140°F)
|
2 bar (30 psi)
|
USB Connector
|
NPT
|
