Débitmètres à turbine

29 produits trouvés
thumbnail

Description

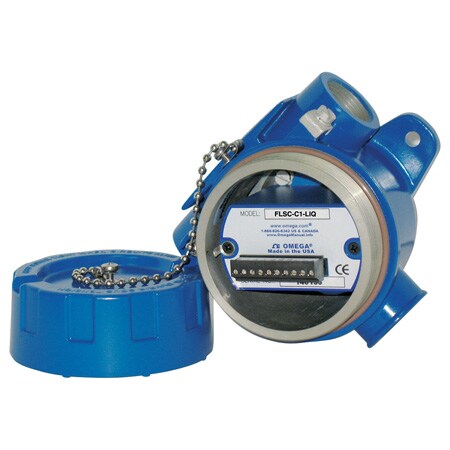

The FLSC-C1-LIQ is amicroprocessor controlled 2-wire4 to 20 mA transmitter. TheFLSC-C1-LIQ converts a low level,frequency signal from a flow sensorinto an analog 4 to 20 mA output.The output is proportional to theflow rate.
Lire la suite

FLSC-C1-LIQ-Series
Prix Stock Measurement Type Connection Type Output Type
4   En stock
Flow
NPT Conduit Hubs
4 to 20 mA
thumbnail

Description The FLSC-C3-LIQ is a DC powered,microprocessor controlledtransmitter. It outputs a pulse scaledper unit of flow, and analog signalproportional to flow rat... Lire la suite

FLSC-C3-LIQ-Series
Prix Stock Measurement Type Connection Type Output Type Features
6   En stock
Flow
NPT Conduit Hubs
4 to 20 mA
Alarm CE ATEX
2   En stock
Flow
NPT Conduit Hubs
4 to 20 mA
CE ATEX
thumbnail

Description The FTB-630 Series turbine metersare dry-register mechanicaltotalizers that offer accurate,economical reading of high flowswith low pressure loss. Thehori... Lire la suite

FTB-630
Prix Stock Measurement Type Connection Type Wetted Materials Output Type
Disponible dans 5 semaines
Flow
4 in 150 lb flange
Cast iron, epoxy coating
Not Applicable
Disponible dans 5 semaines
Flow
3 in 150 lb flange
Cast iron, epoxy coating
Pulse
Disponible dans 5 semaines
Flow
3 in 150 lb flange
Cast iron, epoxy coating
Not Applicable
Disponible dans 5 semaines
Flow
6 in 150 lb flange
Cast iron, epoxy coating
Pulse
Disponible dans 5 semaines
Flow
2 in 150 lb flange
Cast iron, epoxy coating
Not Applicable
show More  Charger plus darticles de cette famille ({0}) ...
thumbnail

Description The FTB-1400 turbine flow meter is designed to meet the demands of the most rigorous flow measurement applications. Originally developed for the secondary... Lire la suite

FTB1400-Series
Prix Stock Flow Measuring Range Measurement Type Connection Type Wetted Materials Output Type
Disponible dans 5 semaines
2.8 to 28 LPM, 0.75 to 7.5 GPM
Flow
1/2 MNPT
Body 316 Stainless Steel, Rotor CD4MCU Stainless Steel, Rotor Support 316 Stainless Steel, Rotor Shaft Tungsten carbide
Hi-temp magnetic pulse output
Disponible dans 5 semaines
7.6 to 56.7 LPM, 2 to 15 GPM
Flow
1 BSPP
Body 316 Stainless Steel, Rotor CD4MCU Stainless Steel, Rotor Support 316 Stainless Steel, Rotor Shaft Tungsten carbide
Not Applicable
Disponible dans 5 semaines
11.3 to 113 LPM, 3 to 30 GPM
Flow
1 MNPT
Body 316 Stainless Steel, Rotor CD4MCU Stainless Steel, Rotor Support 316 Stainless Steel, Rotor Shaft Tungsten carbide
Hi-temp magnetic pulse output
Disponible dans 5 semaines
56.8 to 681 LPM, 15 to 180 GPM
Flow
1 1/2 MNPT
Body 316 Stainless Steel, Rotor CD4MCU Stainless Steel, Rotor Support 316 Stainless Steel, Rotor Shaft Tungsten carbide
Amplified pulse output
Disponible dans 5 semaines
18.9 to 189 LPM, 5 to 50 GPM
Flow
1 MNPT
Body 316 Stainless Steel, Rotor CD4MCU Stainless Steel, Rotor Support 316 Stainless Steel, Rotor Shaft Tungsten carbide
Hi-temp magnetic pulse output
show More  Charger plus darticles de cette famille ({0}) ...
thumbnail

Description Les débitmètres de la série FTB370 sont utilisés pour mesurer le débit d'eau et plusieurs autres liquides à base d'eau. Ils sont d'une c... Lire la suite

FTB370-Series
Prix Stock Flow Measuring Range Measurement Type Connection Type Wetted Materials Output Type
1   En stock
50 to 416 LPM, 13.2 to 110 GPM
Flow
1 1/2 NPT
Brass Body Polypropylene Noryl® Sensor Recona 28 nickel-plated Magnets Polypropylene Noryl® Rotor EPDM O-Ring Sapphire/PA Bearings SS904L Shaft
NPN open collector (hall effect)
Disponible dans 7 semaines
4.2 to 158 LPM (1.1 to 41.6 GPM)
Flow
NPT
Brass Body Polypropylene Noryl® Sensor Recona 28 nickel-plated Magnets Polypropylene Noryl® Rotor EPDM O-Ring Sapphire/PA Bearings 316 SS Shaft
NPN open collector (hall effect)
5   En stock
1.9 to 39.4 LPM, 0.5 to 10.4 GPM
Flow
3/4 NPT
Brass Body Polypropylene Noryl® Sensor Recona 28 nickel-plated Magnets Polypropylene Noryl® Rotor EPDM O-Ring Sapphire/PA Bearings Arcap Shaft
NPN open collector (hall effect)
thumbnail

Description OMEGA™ FTB700-S Series turbine meters have a unique system of precisely-machined helical rotors and high-quality jewel bearings. The rotor is the only mov... Lire la suite

FTB700-S
Prix Stock Flow Measuring Range Measurement Type Connection Type Wetted Materials Output Type
Disponible dans 5 semaines
3 to 400 GPM
Flow
Flange Mount
Meter Body Stainless steel, Flanges 150# ANSI, Turbine Rotor PVDF, Rotor Shafts Zirconia ceramic, Bearings Sapphire journal, ruby ball
Squarewave pulse
Disponible dans 0 semaine
30 to 3000 GPM
Flow
Flange Mount
Meter Body Stainless steel, Flanges 150# ANSI, Turbine Rotor PVDF, Rotor Shafts Zirconia ceramic, Bearings Sapphire journal, ruby ball
Squarewave pulse
Disponible dans 0 semaine
12 to 1200 GPM
Flow
Flange Mount
Meter Body Stainless steel, Flanges 150# ANSI, Turbine Rotor PVDF, Rotor Shafts Zirconia ceramic, Bearings Sapphire journal, ruby ball
Squarewave pulse
Disponible dans 0 semaine
6 to 600 GPM
Flow
Flange Mount
Meter Body Stainless steel, Flanges 150# ANSI, Turbine Rotor PVDF, Rotor Shafts Zirconia ceramic, Bearings Sapphire journal, ruby ball
Squarewave pulse
thumbnail

The FTB-1400-D display is a technologically advanced flow monitor designed to be comprehensive, user-friendly, flexible and cost efficient. This microprocessor-based displa... Lire la suite

FTB-1400-D
Prix Stock Measurement Type Output Type Display Type Features
Disponible dans 99 semaines
Flow
One pulse for each increment of theleast significant digit of totalizer. Pulse type opto-isolated open collector transistor
LCD
Meter mounted display with advanced programming
Disponible dans 99 semaines
Flow
One pulse for each increment of theleast significant digit of totalizer. Pulse type opto-isolated open collector transistor
LCD
Meter mounted display with standard (simplified) programming
Disponible dans 99 semaines
Flow
One pulse for each increment of theleast significant digit of totalizer. Pulse type opto-isolated open collector transistor
LCD
Remote mounted display with advanced programming
Disponible dans 99 semaines
Flow
One pulse for each increment of theleast significant digit of totalizer. Pulse type opto-isolated open collector transistor
LCD
Remote mounted display with standard (simplified) programming
Disponible dans 99 semaines
Flow
One pulse for each increment of theleast significant digit of totalizer. Pulse type opto-isolated open collector transistor
LCD
Swivel mounted display with advanced programming
show More  Charger plus darticles de cette famille ({0}) ...
thumbnail

Description OMEGA’s FTB-420 Series features proven turbine technology in a small package for low flow applications. The turbine technology provides a highly repeatabl... Lire la suite

FTB-420
Prix Stock Flow Measuring Range Measurement Type Connection Type Wetted Materials Output Type
Disponible dans 7 semaines
0.026 to 0.65 GPM, 0.1 to 2.5 LPM
Flow
1/4 G Thread
Body Nylon 12, Turbine Nylon 12, Bearings PTFE/15% graphite11
NPN sinking open collector @ 20 mA maximum leakage
10   En stock
0.026 to 0.65 GPM, 0.1 to 2.5 LPM
Flow
1/4 NPT
Body Nylon 12, Turbine Nylon 12, Bearings PTFE/15% graphite11
NPN sinking open collector @ 20 mA maximum leakage
thumbnail

Description The FTB-430 Series is a highly accurate and repeatable, hall effect turbine flow sensor designed for low flow OEM applications. This low cost, NSF Standar... Lire la suite

FTB-430
Prix Stock Flow Measuring Range Measurement Type Connection Type Wetted Materials Output Type
6   En stock
0.2 to 2.0 GPM
Flow
3/8 NPT male
Body glass reinforced PPO, Turbine PA composite (nylon), Axle 316 stainless steel, Bearings Polyoxymethylyne, POM
NPN sinking open collector @ 25 mA
Disponible dans 7 semaines
0.4 to 4.0 GPM
Flow
3/8 NPT male
Body glass reinforced PPO, Turbine PA composite (nylon), Axle 316 stainless steel, Bearings Polyoxymethylyne, POM
NPN sinking open collector @ 25 mA
thumbnail

Description The FTB-100 Series of turbine meters have a sealed ball bearing design for high accuracy performance (±½% of reading, not full scale) at an economi... Lire la suite

FTB100
Prix Stock Flow Measuring Range Measurement Type Connection Type Wetted Materials Output Type
Disponible dans 9 semaines
9.5 to 110 LPM, 2.5 to 29 GPM
Flow
3/4 MNPT
Body 304 stainless steel, Rotor 17-4 PH steel, Bearings Ceramic
4 to 20 mA, 0 to 5V
Disponible dans 9 semaines
30 to 492 LPM (8 to 130 GPM)
Flow
1 1/2 MNPT
Body 304 stainless steel, Rotor 17-4 PH steel, Bearings Ceramic
4 to 20 mA, 1 to 5V
2   En stock
6.62 to 61 LPM, 1.75 to 16 GPM
Flow
3/4 MNPT
Body 304 stainless steel, Rotor 17-4 PH steel, Bearings Ceramic
4 to 20 mA, 0 to 5V
2   En stock
23 to 352 LPM, 6 to 93 GPM
Flow
1 1/4 MNPT
Body 304 stainless steel, Rotor 17-4 PH steel, Bearings Ceramic
4 to 20 mA, 0 to 5V
1   En stock
151 to 2460 LPM, 40 to 650 GPM
Flow
3 MNPT
Body 304 stainless steel, Rotor 17-4 PH steel, Bearings Ceramic
4 to 20 mA, 0 to 5V
show More  Charger plus darticles de cette famille ({0}) ...
