Thermistances

32 produits trouvés
thumbnail

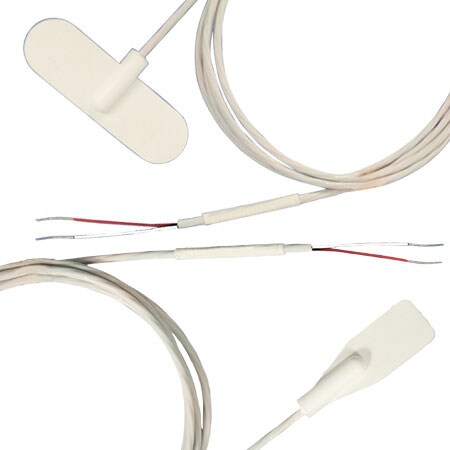

These temperature sensors are available in two patch styles, for either curved or flat surfaces. The integral thermistor element is mounted flush with the self-adhesive surface of the patch, which is foil backed to minimize response times.

Lire la suite

SA2F-TH
Prix Stock Connection Type Maximum Resistance Temperature Accuracy Cable Length Housing Material Mounting Type Probe Type
Disponible dans 0 semaine
Stripped Leads
10,000Ω @ 25°C
±0.1°C @ 0 to 70°C
120 in
Not Applicable
Curved Surface
Self-Adhesive Patch Sensors
Disponible dans 0 semaine
Stripped Leads
10,000Ω @ 25°C
±0.1°C @ 0 to 70°C
80 in
Not Applicable
Curved Surface
Self-Adhesive Patch Sensors
Disponible dans 0 semaine
Stripped Leads
2252 Ω @ 25°C
±0.1°C @ 0 to 70°C
120 in
Not Applicable
Curved Surface
Self-Adhesive Patch Sensors
Disponible dans 0 semaine
Stripped Leads
10,000Ω @ 25°C
±0.1°C @ 0 to 70°C
80 in
Not Applicable
Flat Surface
Self-Adhesive Patch Sensors
Disponible dans 100 semaines
Stripped Leads
5000 Ω @ 25°C
±0.1°C @ 0 to 70°C
120 in
Not Applicable
Curved Surface
Self-Adhesive Patch Sensors
show More  Charger plus darticles de cette famille ({0}) ...
thumbnail

These surface mount thermistor sensors have an adhesive surface on the bottom of the sensor. Just remove the peel strip and apply to any dry, solid surface. These sensors are great for temporary installations, or for areas where installation options are limited.

Lire la suite

SA1-TH-44000
Prix Stock Connection Type Maximum Resistance Temperature Accuracy Cable Length Mounting Type Probe Type
Disponible dans 2 semaines
Stripped Leads
2252 Ω @ 25°C
±0.1°C @ 0 to 70°C
80 in
Flat or Curved Surfaces
Surface-Mount Thermistor Sensor
Disponible dans 3 semaines
Phone plug
10,000 Ω @ 25°C
±0.1°C @ 0 to 70°C
80 in
Flat or Curved Surfaces
Surface-Mount Thermistor Sensor
Disponible dans 3 semaines
Stripped Leads
5000 Ω @ 25°C
±0.1°C @ 0 to 70°C
40 in
Flat or Curved Surfaces
Surface-Mount Thermistor Sensor
Disponible dans 2 semaines
Stripped Leads
5000 Ω @ 25°C
±0.2°C @ 0 to 70°C
40 in
Flat or Curved Surfaces
Surface-Mount Thermistor Sensor
Disponible dans 2 semaines
Stripped Leads
30000 Ω @ 25°C
±0.2°C @ 0 to 70°C
40 in
Flat or Curved Surfaces
Surface-Mount Thermistor Sensor
show More  Charger plus darticles de cette famille ({0}) ...

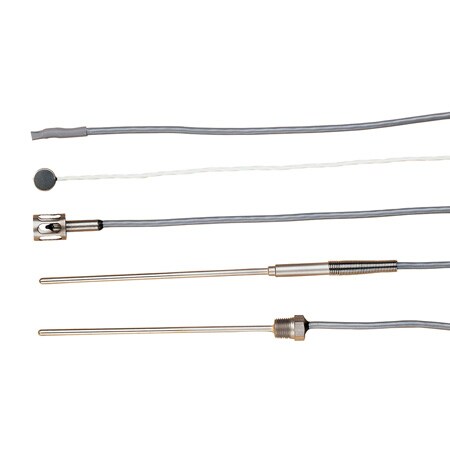

OL-710-Series
Prix Stock Connection Type Maximum Resistance Cable Length Probe Length Housing Material Probe Diameter Mounting Type
Disponible dans 2 semaines
Stripped Leads
30000 Ω @ 25°C
40 in
4.5 in
PVC Insulated and Jacketed Cable
1/8 in
1/8 NPT Mounting Fitting
thumbnail

Description Construction Les thermistances sont fabriquées à partir d'oxydes de nickel, de manganèse, de fer, de cobalt, de magnésium, de titane et d... Lire la suite

44000-THERMIS-ELEMENTS
Prix Stock Maximum Resistance Temperature Accuracy
Disponible dans 13 semaines
2252Ω @ 25°C
±0.2°C @ 0 to 70°C
Disponible dans 13 semaines
3000Ω @ 25°C
±0.2°C @ 0 to 70°C
Disponible dans 13 semaines
5000Ω @ 25°C
±0.2°C @ 0 to 70°C
Disponible dans 13 semaines
30,000Ω @ 25°C
±0.2°C @ 0 to 70°C
Disponible dans 15 semaines
3000Ω @ 25°C
±0.1°C @ 0 to 70°C
show More  Charger plus darticles de cette famille ({0}) ...
44200-44300-THERMIS-KITS
Prix Stock Maximum Resistance Temperature Accuracy Features
115   En stock
R1 = 18,700Ω, R2 = 35,250Ω, R1 = 5700Ω, R1= 12,400Ω, R1 = 3200Ω, R2 = 6250Ω, R1 = 5700Ω, R2 = 12000Ω
±0.15°C, ±0.27°F
Thermistor Composite
Disponible dans 15 semaines
R1 = 23,100Ω, R2 = 88,200Ω, R3 = 38,000Ω
±0.1°C, ±0.18°F
Thermistor Composite
Disponible dans 4 semaines
R1 = 3550Ω, R2 = 6025Ω
±0.4°C @ 0 to 85°C, ±0.72 @ 32 to 185°F
Thermistor Composite
2   En stock
R1 = 5700Ω, R2 = 12000Ω
±0.15°C, ±0.27°F
Linear Thermistor kit
Disponible dans 15 semaines
R1 = 3200Ω, R2 = 6250Ω
±0.15°C, ±0.27°F
Linear Thermistor kit
show More  Charger plus darticles de cette famille ({0}) ...
thumbnail

Description This TH-10 Series general purpose thermistor probes have a stainless steel sheath sealed at the tip for direct immersion into process liquids. The straigh... Lire la suite

TH-10-44000
Prix Stock Connection Type Maximum Resistance Cable Length Probe Length Housing Material Probe Diameter Probe Type
Disponible dans 2 semaines
Stripped Leads
10,000 Ω @ 25°C (0 to 70°C)
40 in
6 in
Stainless Steel
1/4 in
General Purpose Probe
Disponible dans 2 semaines
Stripped Leads
10,000 Ω @ 25°C
40 in
2 in
Stainless Steel
1/4 in
General Purpose Probe
Disponible dans 2 semaines
Stripped Leads
5000 Ω @ 25°C
40 in
4 in
Stainless Steel
1/8 in
General Purpose Probe
Disponible dans 2 semaines
Stripped Leads
10,000 Ω @ 25°C (0 to 70°C)
40 in
10 in
Stainless Steel
1/4 in
General Purpose Probe
Disponible dans 2 semaines
Stripped Leads
10,000 Ω @ 25°C (0 to 70°C)
1 m
100 mm
Stainless Steel
3 mm
General Purpose Probe
show More  Charger plus darticles de cette famille ({0}) ...
thumbnail

Description These sensors are designed to be conveniently mounted directly into ports with 1/8NPT or 1/4NPT threads. The housings are machined from 300 Series Stainle... Lire la suite

TH-44000-NPT
Prix Stock Connection Type Maximum Resistance Temperature Accuracy Cable Length Probe Length Housing Material Probe Diameter Mounting Type Probe Type
Disponible dans 2 semaines
1/4 NPT
3000 Ω @ 25°C
±0.1°C @ 25°C
2 m (80 in)
13 mm
Stainless Steel
6 mm
NPT
Pipe-Plug Thermistor
Disponible dans 2 semaines
NPT
2252 Ω @ 25°C
±0.2°C @ 0 to 70°C
2 m (80 in)
13 mm
Not Applicable
6 mm
Not Applicable
Not Applicable
Disponible dans 2 semaines
1/8 NPT
2252 Ω @ 25°C
±0.2°C @ 0 to 70°C
2 m (80 in)
13 mm
Stainless Steel
6 mm
NPT
Pipe-Plug Thermistor
Disponible dans 2 semaines
1/4 NPT
10,000 Ω @ 25°C
±0.2°C @ 25°C
2 m (80 in)
13 mm
Stainless Steel
6 mm
NPT
Pipe-Plug Thermistor
Disponible dans 2 semaines
1/4 NPT
3000 Ω @ 25°C
±0.2°C @ 25°C
2 m (80 in)
13 mm
Stainless Steel
6 mm
NPT
Pipe-Plug Thermistor
show More  Charger plus darticles de cette famille ({0}) ...
thumbnail

Description Cette sonde précise et abordable est réalisée avec une thermistance de 2252? à 25°C, une poignée moulée et un câble rétractable de 30cm et Ø 3/16". Ce... Lire la suite

THX-400-H
Prix Stock Connection Type Maximum Resistance Temperature Accuracy Cable Length Probe Length Housing Material Probe Diameter Probe Type
Disponible dans 2 semaines
Phone plug
2252 Ω @ 25°C
±0.2°C @ 0 to 70°C
1.5 m (5 ft)
300 mm (12 in)
Stainless Steel
4.5 mm (3/16 in)
Utility Handle
Disponible dans 3 semaines
Phone plug
2252 Ω @ 25°C
±0.2°C @ 0 to 70°C
1.5 m (5 ft)
600 mm (24 in)
Stainless Steel
4.5 mm (3/16 in)
Utility Handle
1   En stock
Stripped Leads
2252 Ω @ 25°C
±0.2°C @ 0 to 70°C
1.5 m (5 ft)
300 mm (12 in)
Stainless Steel
4.5 mm (3/16 in)
Utility Handle
Disponible dans 2 semaines
Stripped Leads
2252 Ω @ 25°C
±0.2°C @ 0 to 70°C
1.5 m (5 ft)
450 mm (18 in)
Stainless Steel
4.5 mm (3/16 in)
Utility Handle
Disponible dans 2 semaines
Stripped Leads
2252 Ω @ 25°C
±0.2°C @ 0 to 70°C
1.5 m (5 ft)
600 mm (24 in)
Stainless Steel
4.5 mm (3/16 in)
Utility Handle
show More  Charger plus darticles de cette famille ({0}) ...
thumbnail

Description The HSTH Series Flexible Thermistor Sensors are hermetically sealed at the sensor tip to provide continuous protection from corrosive environments. This u... Lire la suite

HSTH-44000
Prix Stock Connection Type Maximum Resistance Cable Length Probe Type
13   En stock
Stripped Leads
10,000 Ω @ 25°C
3 m (120 in)
Sealed Tip
Disponible dans 7 semaines
Stripped Leads
10,000 Ω @ 25°C
1 m (180 in)
Sealed Tip
Disponible dans 7 semaines
Stripped Leads
10,000 Ω @ 25°C
1 m (360 in)
Sealed Tip
7   En stock
Stripped Leads
10,000 Ω @ 25°C
1 m (40 in)
Sealed Tip
Disponible dans 7 semaines
Phone plug
10,000 Ω @ 25°C
1 m (40 in)
Sealed Tip
show More  Charger plus darticles de cette famille ({0}) ...
thumbnail

Description Les sondes de thermistance de la série TH-21 sont construites avec les éléments de thermistance en verre encapsulé de la série 55000, qui offrent une exce... Lire la suite

TH-21
Prix Stock Connection Type Maximum Resistance Probe Length Housing Material Probe Diameter Mounting Type Probe Type
Disponible dans 13 semaines
Plain no thread
10,000 Ω @ 25°C
5.25 in
316L Stainless Steel
1/4 in
Not Applicable
Vibration Test Thermistor
Disponible dans 13 semaines
Plain no thread
10,000 Ω @ 25°C
6 in
316L Stainless Steel
1/4 in
Not Applicable
Vibration Test Thermistor
Disponible dans 13 semaines
Plain no thread
2252 Ω @ 25°C
150 mm
316L Stainless Steel
6 mm
Not Applicable
Vibration Test Thermistor
Disponible dans 13 semaines
Plain no thread
2252 Ω @ 25°C
6 in
316L Stainless Steel
1/8 in
Not Applicable
Vibration Test Thermistor
Disponible dans 13 semaines
Plain no thread
2252 Ω @ 25°C
6 in
316L Stainless Steel
1/4 in
Not Applicable
Vibration Test Thermistor
show More  Charger plus darticles de cette famille ({0}) ...
