10" and 15" Web-Enabled Graphic LCD Operator Interface Terminals
Ajouté à votre panier
Configuration terminée.
Veuillez ajouter au panier pour la conserver ou quitter la configuration
Veuillez ajouter au panier pour la conserver ou quitter la configuration
Échec de l'enregistrement des configurations, cliquez sur le bouton Configurer Recommencer
- Resistive Analog Touchscreen
- 10' Models: 3 Serial Ports, Expandable to 5
- 15' Models: 4 Serial Ports, Expandable to 6
- 10 Base-T/100 Base-Tx Ethernet Port Provides Networking Capability: Runs Four Ethernet Protocols Simultaneously

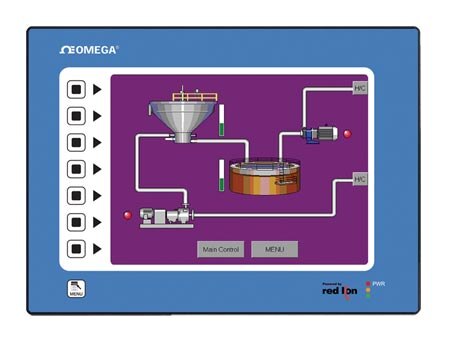

The G310 10-inch and G315 15-inch Operator Interface Terminals combine unique capabilities normally expected from high-end units with a very affordable price. The G310/G315 is able to communicate with many different types of hardware using high-speed RS232/422/485 communications ports and Ethernet 10 Base T/100 Base-TX communications. In addition, the G3 HMI features USB for fast downloads of configuration files and access to trending and data logging. A CompactFlash socket is provided so that Flash cards can be used to collect your trending and data logging information as well as to store larger configuration files. In addition to accessing and controlling of external resources, the G3 HMI allows a user to easily view and enter information. Users can enter data through the touchscreen or front panel keypad. All G3 series HMIs include a web server, trending, data logging, and a built-in "C" language-like editor and compiler for writing your own control functions.
Click here to download G310 and G315 user manuals
Serial cables for G3 HMI, Data Station Plus, and CSMSTR series
Click here to download G310 and G315 user manuals
 Omega offers a complete line of Web Enabled Operator Interfaces. See the Related Links section below for other models in this family. |
Serial cables for G3 HMI, Data Station Plus, and CSMSTR series
Approuvé CE
