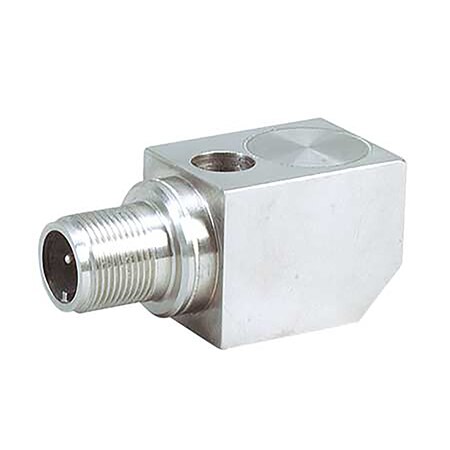

DISCONTINUED - General Purpose Industrial Side Exit Accelerometer
General Purpose Industrial Side Exit Accelerometer
Sensitivity @ 100 Hz, ±10%: 100 mV/g
Frequency Range:
Turn-On Time: ≤0.5 s
Amplitude Range: ±70 g peak
Mounting Resonance: >18 kHz
Transverse Sensitivity: ≤5%
Amplitude Linearity: <1%
Noise (Typical):
Output Impedance: 100 Ω
Grounding: Isolated
Bias Voltage: 10 to 14 Vdc
Power Requirement: 24 to 30 Vdc
Current Regulating Diode: 2 to 6 mA cc
Temperature Range: -40 to 121°C (-40 to 250°F)
Base Strain Sensitivity, Max: 0.005 g/microstrain
Shock Limit: 5000 g peak
Frequency Range:
| ±5% | 5Hz to 4kHz | |
| ±10% | 4Hz to 7kHz | |
| ±3dB | 2Hz to 12kHz |
Amplitude Range: ±70 g peak
Mounting Resonance: >18 kHz
Transverse Sensitivity: ≤5%
Amplitude Linearity: <1%
Noise (Typical):
| Broadband: | ||
| 2.5Hz to 12kHz | 350µg | |
| Spectral: | ||
| 10Hz | 30µg/µHz | |
| 100Hz | 8µg/µHz | |
| 1000Hz | 3µg/µHz | |
Grounding: Isolated
Bias Voltage: 10 to 14 Vdc
Power Requirement: 24 to 30 Vdc
Current Regulating Diode: 2 to 6 mA cc
Temperature Range: -40 to 121°C (-40 to 250°F)
Base Strain Sensitivity, Max: 0.005 g/microstrain
Shock Limit: 5000 g peak
