Electronic Pressure Switch with OLED Display and Alarm Outputs
Electronic Pressure Switch with OLED Display and Alarm Outputs 5 psi
Remises de volume disponibles
Calendrier de remise sur volume
| Quantité | Prix unitaire |
|---|---|
| 1-9 | C$747.35 |
| 10-24 | C$732.40 |
| 25-49 | C$717.46 |
| 50-99 | C$687.56 |
| 100+ | C$680.09 |
Ajouté à votre panier
Configuration terminée.
Veuillez ajouter au panier pour la conserver ou quitter la configuration
Veuillez ajouter au panier pour la conserver ou quitter la configuration
Échec de l'enregistrement des configurations, cliquez sur le bouton Configurer Recommencer
PSW2100-005C Options de modèles
Voir tous les modèlesModifiez ces spécifications pour commander un modèle différente. Toutes les combinaisons ne sont pas valides. Les options compatibles avec les sélections précédentes seront en gras.
*Les options en surbrillance ne sont pas compatibles. Veuillez sélectionner une combinaison différente.
Pressure Range
Pressure Port Size
Deadband Range
Switch Type
Pressure Type
Pressure Port Type
Deadband
Features

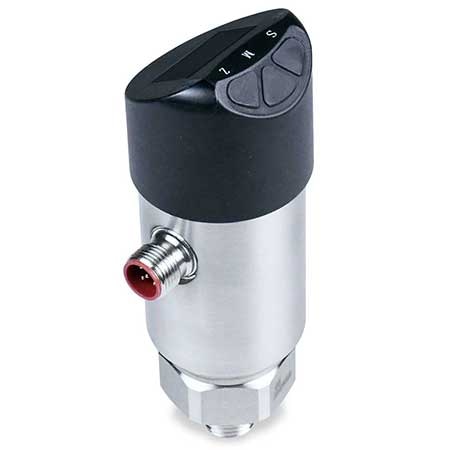

Omega’s PSW2100 electronic pressure switches feature a fully programmable digital interface with monosilicon sensor technology. Setup and programming is painless with the use of three keys and a premium, easy-to-read 1” wide 5-digit OLED display. Visibility is maximized with a display capable of rotating 350° and also with two LEDs providing visual alarms. With the rotation capabilties and a rugged, well-protected IP67 housing rating, this pressure switch is capable of high performance in a wide variety of environments and installation positions. These features coupled with high accuracy make this switch a premium, user-friendly option for pressure measurement and monitoring.
PSW2100 - Alternative Views
RoHS 2015/863 - Voir le certificat
Approuvé CE
Do these switches have CRN's?
Thank you for your inquiry, the PSW2100-005C doesn’t have CRN’S .
Date published: 2022-09-19
can it used on a helium supply system.
The wetted parts of this pressure transducer are all 316 Stainless Steel. It would be ok to use with Helium
Date published: 2021-11-10
Will this switch work with a 4 pin M-12 connector?
This pressure switch requires a 5-pin M12 female connector. It will not interface with a 4-pin M12.
Date published: 2024-03-22
Just purchased a PSW2100-150C, I'm not getting a 4-20mA output, reads 21.1V open circuit and plugged into an measurement unit. Do I need to enable the output? Signal connection diagram is incorrect, Pin 3 RET pin 5 SIG 2 SW2 4 SW1
You should not have to enable the 4 to 20mA output. A wiring issue may be causing the problem. Reviewing the manual and will make corrections. Advise you contact us at pressure@omega.com with your contact information so we can respond directly with the resolution of this issue
Date published: 2022-11-30
Is this suitable for liquid measurement? The water we are measuring is contaminated with mercury.
The Process Connection Material for the PSW2100-400C is 316L SS, this material is suitable for liquids
Date published: 2021-05-19
Is this product capable of external visual warning/monitoring? As in output wired to 2-3 LEDs a couple feet away that read under pressure, good pressure, and/or overpressure? If not, could you point me in the direction of a product that does. Thank you.
The two on board transistor output can be wired to switch the power being used to drive the unit to also drive external alarm devices.
Date published: 2022-11-21
