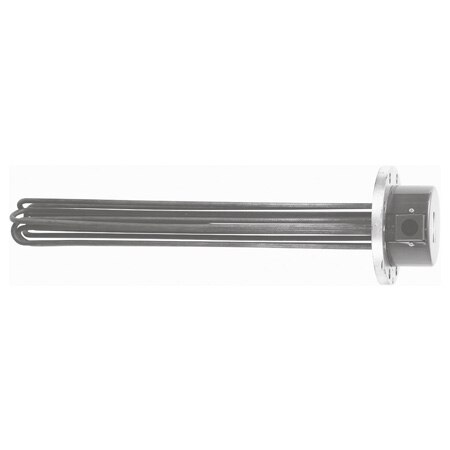

Steel Flanged Immersion Heater Heavy Weight Oil
Flanged Immersion Heater for Sump Oil Applications
Remises de volume disponibles
Calendrier de remise sur volume
| Quantité | Prix unitaire |
|---|---|
| 1-4 | C$5,095.36 |
| 5-9 | C$4,840.59 |
| 10-24 | C$4,738.68 |
| 25-49 | C$4,534.87 |
| 50-99 | C$4,432.96 |
| 100+ | C$4,331.06 |
Ajouté à votre panier
Configuration terminée.
Veuillez ajouter au panier pour la conserver ou quitter la configuration
Veuillez ajouter au panier pour la conserver ou quitter la configuration
Échec de l'enregistrement des configurations, cliquez sur le bouton Configurer Recommencer
- Type E-2 Moisture Tight/Explosion Resistant Enclosure Standard*
- 240 V Models Include an Integral 3 Phase Thermostat
- 3' (8 cm) 150 lb (68 kg) Steel Flange
- Low Watt Density Steel Sheath Elements Suitable for Heating Sump Oil
TMO-30315E2T93/480V/3P Options de modèles
Voir tous les modèlesModifiez ces spécifications pour commander un modèle différente. Toutes les combinaisons ne sont pas valides. Les options compatibles avec les sélections précédentes seront en gras.
*Les options en surbrillance ne sont pas compatibles. Veuillez sélectionner une combinaison différente.
Heating Element Length
Power
Supply Voltage
Form Factor
Power Density
Supply Voltage Type
Heated Medium
Sheath Material
Enclosure Type
Flange
Features
FEATURES
Moisture tight/ explosion resistant enclosure provides dual protection from damaging effects of moisture and containment of an electrical flash within the terminal enclosure or the thermostat.
Adjustable thermostat. Sensitive, long lasting mechanism provides positive temperature control between 60°F (10°C) and 250°F (121°C).
CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warning.
* Heaters with Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas.
Moisture tight/ explosion resistant enclosure provides dual protection from damaging effects of moisture and containment of an electrical flash within the terminal enclosure or the thermostat.
Adjustable thermostat. Sensitive, long lasting mechanism provides positive temperature control between 60°F (10°C) and 250°F (121°C).
CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warning.
| kW | Volts | Circ. | Phase | Dim. B. in(cm) | Wt. lb (Kg) | E-2 Moisture Tight/Explosion Resistant Enclosure* Model No. | Dim. N in(cm) |
| 3 | 240 | 1 | 3 | 25 1/4 (64) | 24(11) | TMO-30315E2T93/240V/3P | 1 1/2 (4) |
| 3 | 480 | 1 | 3 | 25 1/4 (64) | 24(11) | TMO-30315E2T93/480V/3P | 1 1/2 (4) |
| 4 | 240 | 1 | 3 | 33 1/16 (84) | 25(11) | TMO-30415E2T93/240V/3P | 1 1/2 (4) |
| 4 | 480 | 1 | 3 | 33 1/16 (84) | 25(11) | TMO-30415E2T93/480V/3P | 1 1/2 (4) |
| 6 | 240 | 1 | 3 | 48 1/16(122) | 29(13) | TMO-30615E2T93/240V/3P | 1 1/2 (4) |
| 6 | 480 | 1 | 3 | 48 1/16(122) | 29(13) | TMO-30615E2T93/240V/3P | 1 1/2 (4) |
