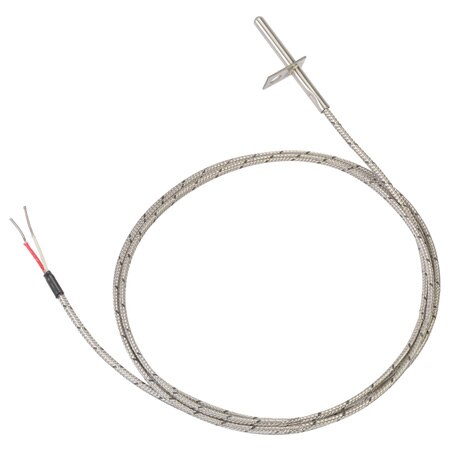

High Temperature Thermocouple Sensor For Oven or Furnace Measurements
Article# TOS-J-U-6-36SB
Article# --
- 316 SS Insertion Tube with Mounting Bracket
- Rugged 20 AWG Stranded Thermocouple Wire with Fiberglass Insulation and Optional Stainless Steel Overbraiding
- Insertion Temperature: 204°C (400°F) Continuous 315°C (600°F) Intermittently
- Available in J/K/T/E/N Thermocouple Types
Designed for use in oven monitoring or other applications where a simple ¼-20 mounting bolt/screw is needed. The thermocouple sensor can withstand constant temperatures of 204°C (400°F) and 315°C (600°F) intermittently.
The stainless steel braided cable provides abrasion resistance and easy installation into cable trays or ducts. The sensor can be customized with a longer probe length, longer cable length, or other thermocouple type.
Specifications
Insertion Length: 25.4 mm (1.0")
Tube: 316 SS
Tube Diameter: 4.77 mm (0.188")
Mounting Bracket: 316 SS
Mounting Hole: 5 mm (0.2") dia.
Cable: 20 AWG stranded, fiberglass insulation, 300 Series SS overbraiding
Cable Length: 0.9 m (36")
Thermocouple: Ungrounded or grounded available
Maximum Temperatures
Probe and Cable: 204°C (400°F)
Mounting Bracket Braze:
Connection: 204°C (400°F)
Continuous: 316°C (600°F) intermittently
The stainless steel braided cable provides abrasion resistance and easy installation into cable trays or ducts. The sensor can be customized with a longer probe length, longer cable length, or other thermocouple type.
Specifications
Insertion Length: 25.4 mm (1.0")
Tube: 316 SS
Tube Diameter: 4.77 mm (0.188")
Mounting Bracket: 316 SS
Mounting Hole: 5 mm (0.2") dia.
Cable: 20 AWG stranded, fiberglass insulation, 300 Series SS overbraiding
Cable Length: 0.9 m (36")
Thermocouple: Ungrounded or grounded available
Maximum Temperatures
Probe and Cable: 204°C (400°F)
Mounting Bracket Braze:
Connection: 204°C (400°F)
Continuous: 316°C (600°F) intermittently
