Cartes d'interface numérique

21 produits trouvés
thumbnail

Description

The CIO-PDISO8 board is a low cost, low profile way to control and monitor high voltage ac or dc directly from your personal computer. It provides 8 electro-mechanical relays for output actuation and 8 isolated digital inputs.
Lire la suite

CIO-PDISO8-Series
Nombre d'entrées Stock Prix
8
thumbnail

Description The Models EN-EIC-325 and EN-EIC-325-PCI Four Axis Encoder Interface Cards accommodate most of the popular optical encoders available. The board supports ... Lire la suite

EN-EIC-325-Series
Option supplémentaire Nombre d'entrées Puissance Tension d'alimentation Stock Prix
Connecteur additionnel
4
+5 V, 200 mA max +12 V, 100 mA max -12 V, 50 mA max
+5 V H25 +12 V -12 V
Standard
4
+5 V H25 +12 V -12 V
+5 V, 200 mA max +12 V, 100 mA max -12 V, 50 mA max
thumbnail

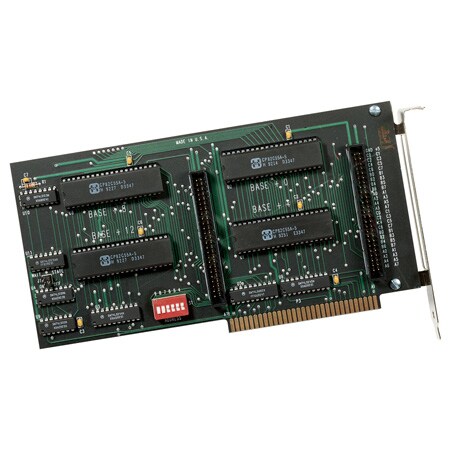

Description The CIO-DIO96 can control 96 devices or sense 96 contact closures from a single card in a PC. The CIO-DIO96 employs four 8255 parallel peripheral interfac... Lire la suite

CIO-DIO96-Series
Nombre d'entrées Puissance Tension d'alimentation Stock Prix
96
Logic Low Level -0.5 to 0.8 V Max. Logic High Level 2.0 to 5.0 V Max.
Input Current ±10 uA Output Low Sink Current 2.5 mA @ 0.45 V Output High Source Current -2.5 uA @ 2.4 V
thumbnail

Description

The CIO-DIO192 can control 192 devices or sense 192 contact closures from a single card in a PC. The CIO-DIO192 employs eight 8255 parallel peripheral interface chips which are programmable in three modes simple byte input or output or strobed I/O.
Lire la suite

CIO-DIO192
Nombre d'entrées Stock Prix
100
thumbnail

Description The CIO-DIO24 low-cost digital I/O board is designed for use with IBM PC/XT/AT or compatible computers. The board employs one 8255 digital I/O chip, contr... Lire la suite

CIO-DIO24
Nombre d'entrées Puissance Tension d'alimentation Stock Prix
24
+5V @ 400 mA
+5 V
thumbnail

Description The PCI-DIO24 and PCI-DIO24H are low cost, 24-bit, logic level digital I/O boards for the PCI bus for IBM or compatible PC’s. The PCI-DIO24 is based on th... Lire la suite

PCI-DIO24-Series
Option supplémentaire Nombre d'entrées Puissance Tension d'alimentation Stock Prix
Courant élevé
24
625 mA Typique, 960 mA max
+5 V
Standard
24
625 mA Typique, 960 mA max
+5 V
thumbnail

Description The PCI-DIO96H and PCI-DIO48H are high density, logic level, digital I/O boards for IBM or compatible PC’s with a PCI bus. The PCI-DIO96H offers 96 bits o... Lire la suite

PCI-DIO48-96
Option supplémentaire Nombre d'entrées Puissance Tension d'alimentation Stock Prix
Courant élevé
48
1.2 A Typique, 1.6 A max
+5 V
Courant élevé
96
2.2 A Typique, 3.35 A max
+5 V
thumbnail

Description The OMG-PCI-DIO series provide 32, 48, and 96 channels of buffered digital I/O emulating 8255s for industrial control applications. 10K pull up resistors ... Lire la suite

OMG-PCI-DIO
Nombre d'entrées Puissance Tension d'alimentation Stock Prix
48
+5 V @ 794 mA
+5 V
96
+5 V @ 1000 mA
+5 V
32
+5 V @ 500 mA
+5 V
