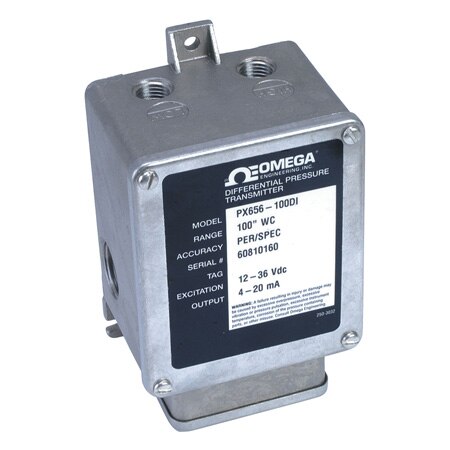

Highly Accurate, Low Pressure Industrial Transmitter
Article# PX656
Article# --
SPECIFICATIONS
Excitation: 12 to 36 Vdc
Output: 4 to 20 mA (2 wire)
Operating Temp: -29 to 85°C (-20 to 185°F)
Compensated Temp: -18 to 72°C (0 to 160°F)
Thermal Effects:
Zero: 0.015% FS/°F
Span: 0.015% FS/°F
Proof Pressure: 10 psi
Burst Pressure: 50 psi
Static Pressure: 100 psi
Gage Type: Capacitance
Max Loop Resistance: (Supply voltage - 12) x 50 Ω
Calibration Report: NIST calibration at 25, 50, 75 and 100% FS; upscale and downscale provided
Response Time: 250 ms
Wetted Parts: Dry, clean non-corrosive gases only
Enclosure: NEMA 4X (IP65); 137 L x 76 W x 64 mm D (5.4 x 3 x 2.5')
Pressure Port: ¼ NPTF
Electrical Conn: Screw terminal (two ½ NPTF conduit)
Weight: 955 g (2.1 lb)
Excitation: 12 to 36 Vdc
Output: 4 to 20 mA (2 wire)
Operating Temp: -29 to 85°C (-20 to 185°F)
Compensated Temp: -18 to 72°C (0 to 160°F)
Thermal Effects:
Zero: 0.015% FS/°F
Span: 0.015% FS/°F
Proof Pressure: 10 psi
Burst Pressure: 50 psi
Static Pressure: 100 psi
Gage Type: Capacitance
Max Loop Resistance: (Supply voltage - 12) x 50 Ω
Calibration Report: NIST calibration at 25, 50, 75 and 100% FS; upscale and downscale provided
Response Time: 250 ms
Wetted Parts: Dry, clean non-corrosive gases only
Enclosure: NEMA 4X (IP65); 137 L x 76 W x 64 mm D (5.4 x 3 x 2.5')
Pressure Port: ¼ NPTF
Electrical Conn: Screw terminal (two ½ NPTF conduit)
Weight: 955 g (2.1 lb)
