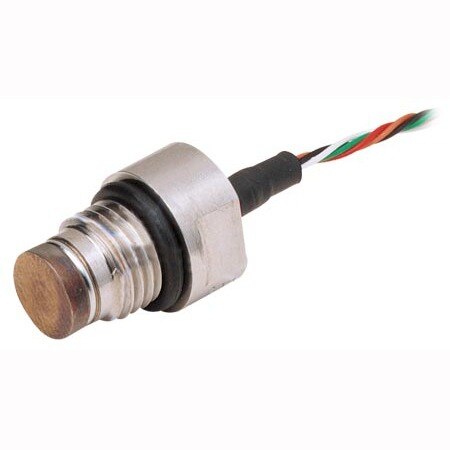

Subminiature Pressure Transducer
Article# PXM600MU
Article# --
- All Stainless Steel Diaphragm and Threaded Side Wall Construction
- Rugged Stainless Steel Case
- Subminiature Design
SPECIFICATIONS
Excitation: 5 Vdc @15 mA
Output: 10 mV typical @ 5 Vdc
Sensitivity: 2 mV/V Nominal
Input Impedance: 350 Ù min
Output Resistance: 350 Ù min
Insulation Resistance: 5 MÙ @ 75 Vdc
Accuracy: ±1% FS; linearity and hysteresis combined; NIST-traceable calibration included
Repeatability: ±0.1% FS
Zero Balance: ±3% FS
Operating Temperature Range: -54 to 121°C (-65 to 250°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Zero Effect: <±0.018% FS/°C
Thermal Sensitivity Effect: ±0.036% rdg/°C
Proof Pressure: 150% range
Burst Pressure: 400% range
Body and Diaphragm Material: 17-4 PH stainless steel
Electrical Connection:4-conductor cable
Weight: 14 g (0.5 oz)
Excitation: 5 Vdc @15 mA
Output: 10 mV typical @ 5 Vdc
Sensitivity: 2 mV/V Nominal
Input Impedance: 350 Ù min
Output Resistance: 350 Ù min
Insulation Resistance: 5 MÙ @ 75 Vdc
Accuracy: ±1% FS; linearity and hysteresis combined; NIST-traceable calibration included
Repeatability: ±0.1% FS
Zero Balance: ±3% FS
Operating Temperature Range: -54 to 121°C (-65 to 250°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Zero Effect: <±0.018% FS/°C
Thermal Sensitivity Effect: ±0.036% rdg/°C
Proof Pressure: 150% range
Burst Pressure: 400% range
Body and Diaphragm Material: 17-4 PH stainless steel
Electrical Connection:4-conductor cable
Weight: 14 g (0.5 oz)
